Electronic modules – produced by specialists

You can expect a great deal from us: Precision, punctual delivery and the best conditions. Every order is dealt with professionally, our manufacturing is compliant with IPC-JSTD-001 Class 3. For us, quality does not depend on the quantity or type of product. This applies for every product at vbe, from one-off to series production. Clear structures, fixed, unambiguous work sequences and reproducible processes are the foundation for our consistent quality, as are defined, monitored conditions of the manufacturing environment, like temperature and humidity. Our finished products are traceable, right back to their individual components.

Our strategy: Zero Defect

A decisive factor is the certainty that this solid quality level can only be continuously assured by very well-trained employees with a responsible attitude. For this reason vbe has its own Certified IPC Trainer (CIT) who trains all production personnel as Certified IPC Specialists (CIS). All production processes are covered by internal process controls, and the results of these can be communicated at any time.

vbe‘s production offer includes:

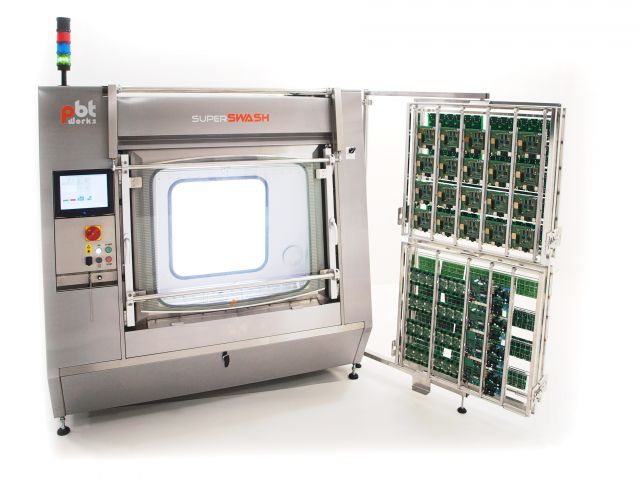

  • Cleaning of boards, including contamination testing
  • SMD, THT, press-fit technology
  • Smallest form 01005, pitch 0.3 mm
  • µBGA, QFN, CSP, LGA etc.
  • Accuracy of assembly: 25µ

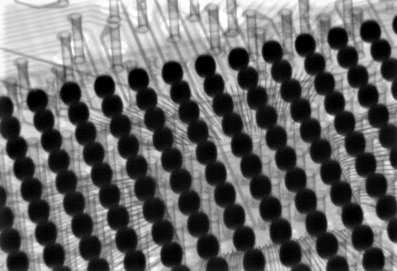

  • process monitoring X-ray
  • PoP technology, fitting in cavities
  • ROHS and non-ROHS
  • Soldering under inert gas atmosphere
  • Traceability
  • Varnishing and coating with Certonal
  • Unser Bestückungs- und Löt-Equipment:

    SMD automatic assembly machine 2 x My100DX-14
    THT assembly 2x Royonic Light Assembly Table 512
    Jet paste printer My500
    Stencil paste printer Dek Horizon 03i
    Selective soldering unit Vitronics Soltec mySelective 6745
    Reflow soldering unit Vitronics Soltec MR933+
    Reflow soldering unit SMT Quattro Peak M
    Wave soldering plant Vitronics Soltec Delta3
    Vapor phase soldering unit Asscon VP32
    We test all modules that are to be produced for the first time for manufacturability, and draw up the working papers for them. Using a soldering sample we create a soldering profile individually adapted to the product, which is specifically assigned to the module and is approved by Production Planning before the start of production. Profiling includes SMD soldering, wave soldering and selective soldering. By using this method we ensure reproducibility in further orders. Each manufacturing step is tested against a sample module, documented and approved by the Quality Assurance department.

    Before the assembly process, all boards are dried in compliance with IPC J-STD-020 and J-STD-033.
